Aperçu /Produits/Air conditionné sur le toit d'un bus/10-12m buses ES-06 10-12m all-electric bus air conditioner for All-electric bus tram, trolleybus

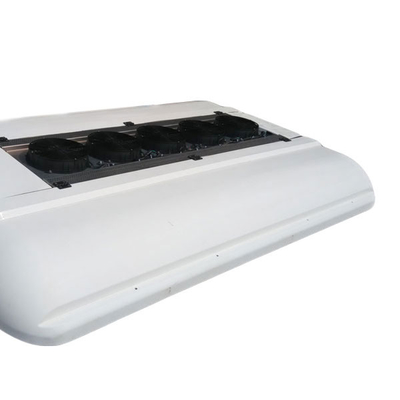

10-12m buses ES-06 10-12m all-electric bus air conditioner for All-electric bus tram, trolleybus

1 Set
MOQ
10-12m buses ES-06 10-12m all-electric bus air conditioner for All-electric bus tram, trolleybus
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Engine: None
Year: 2007-2009
Model: Falcon 45
OE NO.: ED-06
Car Fitment: Bus & Coach Intl (BCI)
Reference NO.: yutong
Size: 2420*1900*230
Type: Other
Warranty: life long after sale service
Car Model: Universal Car
Product Name:: ES-06 Electric Bus Air Conditioner (10-12m Bus)
Driven Type: Vehicle Electric or Battery
Installation: Rooftop Mounted
Compressor: Hermetic Scroll Compressor
Refrigerant: R407c
Application: 10-12m all-electrical buses, hybrid buses, tramways, and trolleybuses
Cooling Capacity: 275000Kcal/h / 32kw / 110000BTU
Heating Capacity: 26,000 Kcal/h /30kw / 102000BTU
Input Voltage Range(Main power line): DC400V~DC720V
Input Voltage Range (Control system): DC-24V 5A
Certification: ce
Informations de base
Certification: ce
Model Number: Falcon 45, Universal Car
Conditions de paiement et expédition
Supply Ability: 2000 Set/Sets per Month
Description de produit
All-electric Bus Air Conditioner Introduction
Our Industry is offering a specialized range of all-electrical bus air conditioning system (trolley air conditioner or tram air
conditioning) for any type of all-electrical buses, hybrid buses, tramways, and trolleybuses.
The ES series bus air conditioners are roof top mounted all electric bus air conditioning system, designed for 6-18 meter length.electrical bus, tram or trolley buses. The hermetic scroll compressor and control system are powered by vehicle electric or battery.
Tips: Customers can choose DC400-720V voltage models according to different demands.
The Main Structure of Rooftop Electric Bus Air Conditioning System
▲ Condenser assembly, evaporator assembly and compressor assembly
▲ DC 500V generator, 380V vehicle alternator
▲ Electronic control box and other major components, such as Dandfoss expansion valve, four ways, Brushless PWM blower and fan with 7 speed air flow adjusting module, intelligent controller Can bus system

ES-06 Electric Bus Air Conditioning Introduction

It has developed intelligent inverter model PI with independent intellectual property through extensive bench testing,
theoretical calculations and actual vehicle validation, which in accordance with strict production process and keep up with the tendency of the day. And Guchen is in the leading position in the industry of full electric bus air conditioner for its all DC products can save more than 15% energy which has been verified in vehicle test.
ES-06 air conditioner unit for electric bus applies for 10-12m buses, which can offer a big cooling capacity that up to 32KW. Also customers can use DC400-720V voltage for this air conditioner for electric vehicle. And what is more important is ES-06 bus roof mounted air conditioner can be equipped with 30KW heating capacity to meet different demands of our customers.

ES-06 Electric Bus Air Conditioning Features

1.Use scroll compressor, intellective heat load reaction and automatic cooling capacity adjusting.
2.Modular, roof mounted, light weight, fit for vehicle of different width
3.Adopt CAN control technology, multi-operation mode, concisely lining and more reliable control
4.Adopt R407C environment friendly refrigerant, volume charge saving more than 20%.
Model
ED-06
Cooling Capacity
275000Kcal/h / 32kw / 110000BTU
Heating Capacity
26,000 Kcal/h /30kw / 102000BTU
Input Voltage Range(Main power line)
DC400V~DC720V
Input Voltage Range (Control system)
DC-24V 5A
Rated Power Consumption
10.0Kw
Max Ambient temperature
46 °C
Expansion Valve
Electronic expansion valve Danfoss ETS6-18
Gas-liquid Separator
KLCJ-0616
Bidirectional Dry Filter
Danfoss DCB084s KLCJ-0705
Fresh Air Device/ Fresh Air volume
KLCJ-0705 / 1250 m3/h
